01PORTABLE SOLAR PANELS
Secure Parallel Connections for Solar Arrays
Expanding a photovoltaic array requires components that integrate seamlessly into existing infrastructure. This AIMALL adapter set provides a clean, structured way to branch circuits without cluttering the installation space.
Designed for parallel connections, this T-type connector pair handles high current loads while maintaining electrical stability. It suits installers and homeowners looking to scale their solar power systems efficiently.

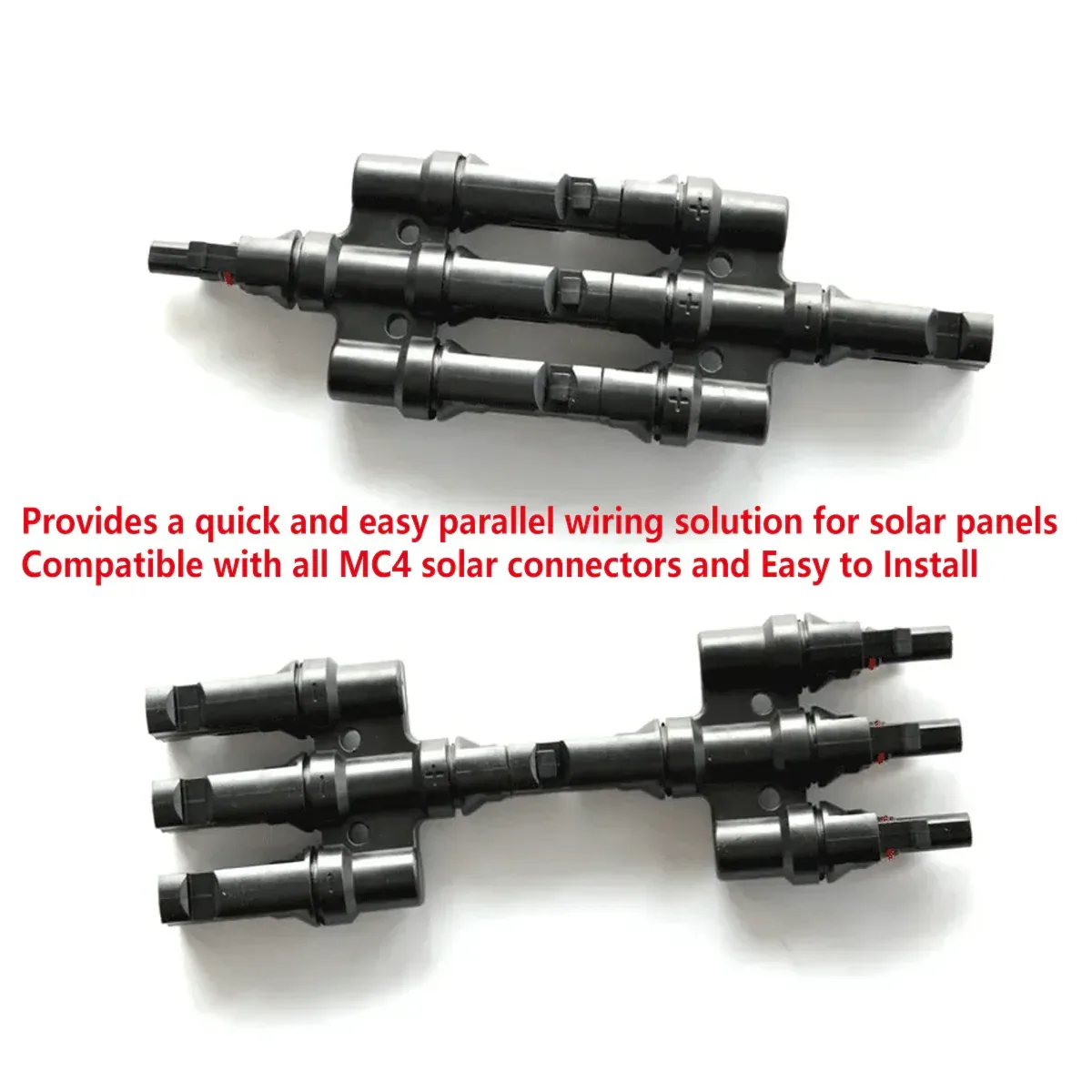

1 Pair of MC4 T-type Solar Connectors
02DESIGN
T-Branch Geometry for Parallel Flow
The unit adopts a distinct T-shape, allowing a single input line to split into multiple outputs or vice versa. This geometry is essential for parallel wiring in solar arrays, where several panels feed into a common string. The form factor remains compact, measuring 6 x 2 x 10.8 cm, ensuring it fits neatly within tight junction boxes or along rail mounts without impeding adjacent components.
04SECURITY
Snap-In Locking for Outdoor Stability
Outdoor environments introduce vibration and thermal expansion, which can loosen standard plug-and-play connections. The integrated snap-in locking mechanism addresses this by physically securing the mating halves once inserted. This positive engagement prevents accidental disconnection, providing peace of mind during windy conditions or routine maintenance when panels are handled frequently.
05COMPATIBILITY
Standard MC4 Interface Integration
The set includes one pair of connectors, configured as one male-to-multi-female and one female-to-multi-male unit. This allows for flexible configuration depending on whether you are branching out from a main cable or merging lines into a combiner box. As it adheres to the standard MC4 protocol, it pairs readily with most major brand cables and inverters, reducing compatibility headaches during installation.
06AT A GLANCE
The key points
- Rated for 30A current and 1000V DC voltage
- Snap-in locking system secures the connection
- Compatible with standard MC4 interfaces
- Compact black housing measures 6 x 2 x 10.8 cm
- Includes one pair of male-to-female adapters
07
About this product
This T-type MC4 solar connector pair offers a secure and efficient solution for parallel connections in solar power systems.Compatible with standard MC4 interfaces, the design supports high current and voltage, with a reliable snap-in locking system for safe outdoor use.Ideal for expanding photovoltaic arrays quickly and effectively.
Features
- Compatible with all standard MC4 solar connectors
- Supports up to 30A current and 1000V DC
- Snap-in locking ensures firm, stable connections
- Available in 3-way, 4-way, or 5-way formats
- Compact, weather-resistant construction for outdoor durability
Specifications
- Material
- Plastic and metal contact
- Connection Type
- T-type MC4 (1 male to multi-female, 1 female to multi-male)
- Max Current
- 30A
- Max Voltage
- 1000V DC
- Locking System
- Snap-in
- Dimensions
- 6 x 2 x 10.8 cm / 2.36 x 0.78 x 4.25 in
- Colour
- Black
Note
- Manual measurement may result in 1–3 cm size deviation.
- Slight colour variation may occur due to lighting or screen differences.
- Please confirm connector format and compatibility before installation.
- Ensure the snap-in lock is fully engaged before use.
