01HARD DRIVES
Dual protocol speed in a compact dock
A discreet block of ABS plastic, the Simplecom SD511 sits unobtrusively on a desk or shelf, ready to bridge the gap between internal storage and external devices. Its clean lines suggest precision engineering rather than bulky hardware.
This docking station accepts both NVMe and SATA M.2 drives, delivering high-speed transfer rates via USB-C. It suits users who need immediate, driver-free access to their solid-state storage without opening a computer case.
SD511 supports both NVMe and SATA based M.2 SSD (M Key or B+M Key), bandwidth will be limited to 6Gbps when using SATA M.2 SSD, as maximum transfer rate of SATA M.2 SSD is 6Gbps
02MATERIALS
Durable ABS housing for daily use
Constructed from robust ABS plastic, the enclosure provides a rigid yet lightweight shell that protects the internal components. The material choice keeps the unit compact and easy to handle, ensuring it remains a practical addition to any workspace without adding significant bulk or weight to your setup.
04CONNECTIVITY
Flexible cabling for varied setups
The included combo cable features both USB-C and USB-A connectors, accommodating a wide range of laptops, desktops, and mobile devices. This versatility eliminates the need for adapters, while the LED indicator provides clear visual feedback on power status and data activity at a glance.
PRACTICALITY
Driver-free setup and portability
Designed for plug-and-play convenience, the SD511 requires no additional software installation, making it instantly ready upon connection. Powered directly through the USB port, it operates without an external power brick. The packaging measures 26 x 17 x 9 cm and weighs 1 kg, keeping the entire kit portable for on-the-go data management.
AT A GLANCE
The key points
- Supports both NVMe and SATA M.2 SSDs
- USB 3.2 Gen 2 interface up to 10Gbps
- Compatible with M Key and B+M Key drives
- Includes USB-C and USB-A combo cable
- Plug-and-play design requires no drivers
About this product

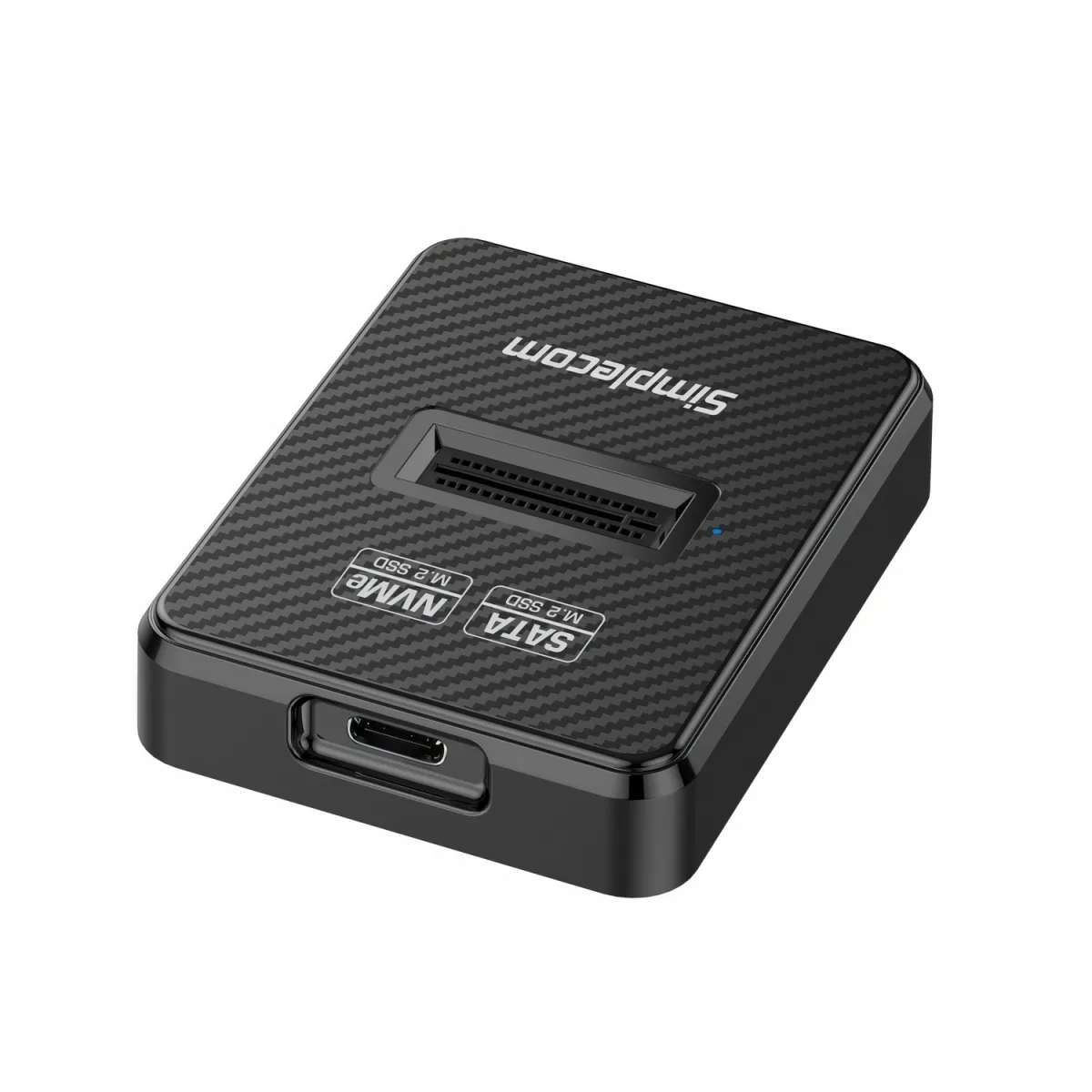

Simplecom SD511 M.2 SSD Docking Station NVMe and SATA Dual Protocol USB 3.2 Gen 2 10Gbps
SD511 is a high-speed, dual-protocol M.2 SSD Docking Station designed for both NVMe and SATA M.2 SSDs. Compatible with M Key and B+M Key M.2 SSDs, it provides a quick and hassle-free way to access M.2 SSD drives instantly through the USB port.
Featuring a USB 3.2 Gen 2 interface, it supports fast data transfer speeds of up to 10Gbps, ensuring efficient file transfers and optimal performance. With UASP and TRIM support, it enhances data transfer speeds, improves efficiency. For added convenience, the included USB-C and USB-A combo cable allows flexible connectivity across different devices. With a plug-and-play design, no drivers are needed for quick and hassle-free setup.
Compact, efficient, and easy to use, this M.2 SSD Docking Station is the perfect solution for high-speed data access and management.
Features
- Dual Protocol support for both NVMe and SATA M.2 SSD
- Compatible with M Key or B+M Key M.2 SSD
- USB-C interface compliant with USB 3.2 Gen 2 standard
- Supports data transfer rates up to 10Gbps*
- USB-C and USB-A combo cable, convenient for use on different devices
- Supports USAP for faster data transfer speed and maximum performance
- Supports TRIM command for improved data writing to extend SSD life
- Plug and play, no driver required
- LED indicator for power and activity status
- USB powered, no external power required
Specifications
- Model
- SD511
- Material
- ABS Plastic
- Interface
- USB-C (USB 3.2 Gen 2)
- Transfer Rate
- NVMe M.2 up to 10Gbps, SATA M.2 up to 6Gbps
- Compatible M.2 Type
- NVMe M.2, SATA M.2
- Compatible M.2 Size
- 2230 / 2242 / 2260 / 2280 / 22100
- Dimension
- 66 x 51 x13mm (LxWxH)
- Weight
- 40g
- Operating System Support
- Windows 7 and later, macOS 10.8 and later, Linux
Package Contents
- 1x SD511 M.2 SSD Docking Station
- 1x USB-C + USB-A combo cable
- 1x User Manual
