01HARD DRIVES
Twenty Gigabits Through A Single Port
Tucked discreetly behind the side panel of a modern desktop, this expansion card transforms a standard PCI Express slot into a high-bandwidth gateway for your peripherals. It sits quietly within the chassis, ready to handle the demands of contemporary storage and input devices.
The Simplecom EC318v2 provides a single USB-C interface capable of 20Gbps throughput, ideal for users who require rapid file transfers or low-latency connections. It suits builders upgrading existing towers or those constructing new systems that demand maximum peripheral performance.
02CONNECTIVITY
High-Speed USB-C Interface
The card features a USB 3.2 Gen 2x2 interface, enabling data transfer rates of up to 20Gbps through a single USB-C port. This high bandwidth is particularly useful for connecting external solid-state drives, high-resolution displays, or other peripherals that benefit from reduced latency and faster throughput.
COMPATIBILITY
Flexible Slot Requirements
Designed for versatility, the card occupies a PCIe x4 lane but remains fully functional when installed in larger x8 or x16 slots. This flexibility allows it to fit into a wide range of motherboard layouts, from compact form factors to full-size ATX boards, ensuring broad applicability across different system builds.
SETUP
Effortless Plug-and-Play Installation
Installation requires no manual driver configuration on Windows operating systems, where the hardware is recognised automatically upon boot. The absence of external power cables simplifies the process, allowing users to focus on cable management and airflow rather than complex wiring tasks during assembly.
AT A GLANCE
The key points
- Delivers up to 20Gbps data transfer via one USB-C connector
- Fits standard PCIe x4, x8, or x16 slots on the motherboard
- Powered directly by the slot with an integrated 12V to 5V module
- Plug-and-play setup with automatic installation on Windows systems
- Backward compatible with USB 3.2 Gen 1, Gen 2, and earlier devices
About this product

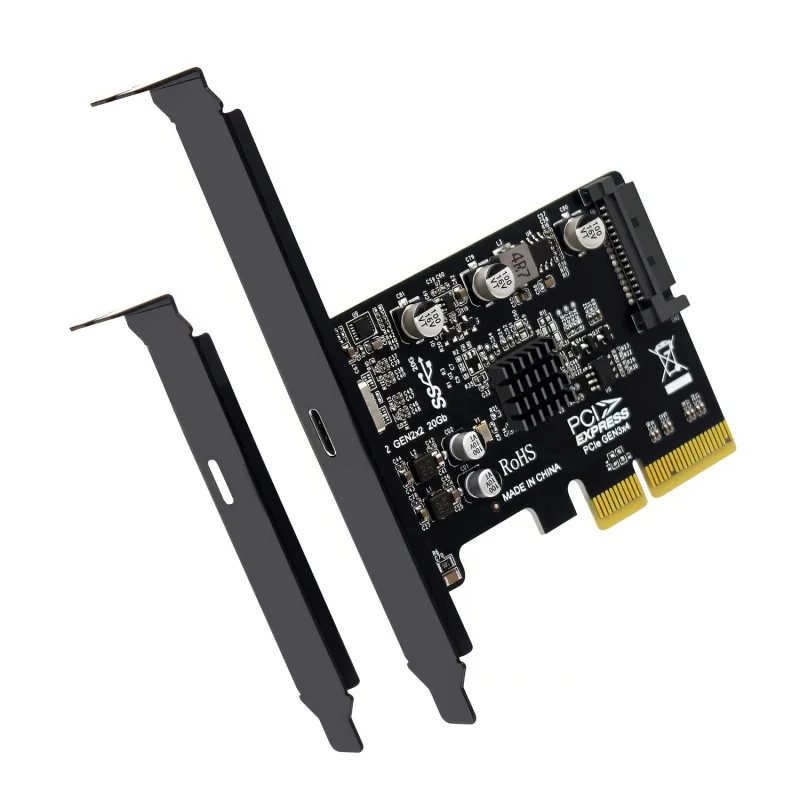

Simplecom EC318v2 PCI-e x4 to USB 3.2 Gen2x2 20Gbps USB-C Expansion Card
This PCIe x4 expansion card is an ideal solution for upgrading your desktop PC with high-speed USB connectivity. Featuring a USB 3.2 Gen 2×2 interface, this card delivers lightning-fast data transfer speeds of up to 20Gbps through a single USB-C port, ideal for modern devices requiring maximum performance.
This PCIe expansion card is compatible with PCIe x4, x8, and x16 slots, making it easy to integrate into various system configurations. Powered directly by the PCIe slot, it requires no external power supply, making installation simple and hassle-free. An integrated PCIe 12V to 5V module provides stable power to the USB ports for reliable performance.
This card is plug-and-play, with automatic installation on Windows operating systems for a hassle-free setup. Whether you are upgrading your desktop PC or building a new system, this expansion card is a reliable and high-performance addition to your PC.
Features
- PCIe x4 expansion card, also compatible with PCIe x8 or x16 slots
- USB 3.2 Gen 2×2 interface supports data transfer rates of up to 20Gbps
- Adds 1x USB-C 20Gbps port to your desktop PC
- Backward compatible with USB 3.2 Gen 1, Gen 2, and earlier devices
- Built-in overcurrent protection
- Powered by PCIe, no external power required
- Integrated PCIe 12V to 5V module provides power to USB ports
- Plug and play, automatic installation on Windows
Specifications
- PCIe Interface
- PCIe 3.0 x4 (compatible with PCIe x8 or x16 slot)
- USB Standard
- USB 3.2 Gen 2×2 20Gbps
- Connectors
- 1x USB-C
- USB Speed Support
- 20Gbps, 10Gbps, 5Gbps, 480Mbps
- USB Power Source
- Integrated PCIe 12V to 5V module, SATA 15Pin (backup power only)
- Operating System Support
- Windows 8 and above
Package Contents
1x USB 3.2 Gen 2×2 1-Port PCIe x4 Card
1x low profile bracket
Important Note
The EC318v2 does not support DP Alt Mode or USB-C Power Delivery.
The EC318v2 is designed for PCIe 3.0 interfaces. To achieve the full speed of USB 3.2 Gen 2×2, use a PCIe slot based on PCI Express 3.0 or a newer version on your motherboard.
Actual data transfer speeds may be limited by the connected USB device. Please check your USB device’s maximum supported speed.
Thunderbolt 3 devices are supported but are only compatible with a 10 Gbps data transfer rate.
Windows 7 is not supported.
