01SEWAGE PUMPS
Cast Iron Power for Raw Wastewater
Beneath the surface of any septic system lies a task that demands robust engineering. The Protege PSWP-085 sits quietly in the pit, built from heavy-duty cast iron and stainless steel to withstand the rigours of raw sewage and storm water.
This submersible unit moves wastewater efficiently to treatment or disposal. It suits dwellings relying on septic tanks, sewage pits or catchments where reliable, automatic operation is essential.
02CONSTRUCTION
Built for Arduous Sewage Conditions

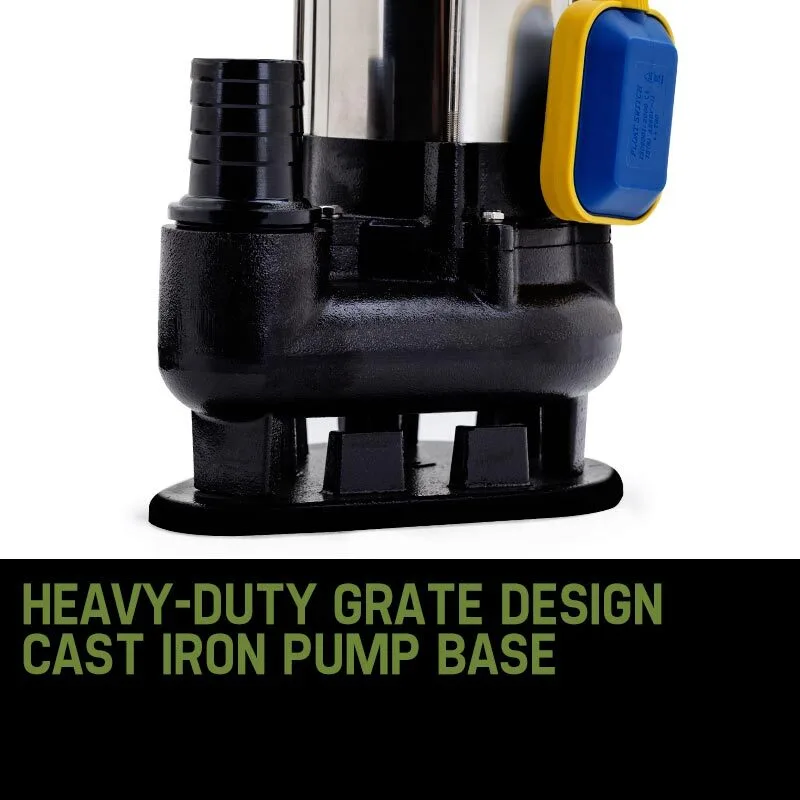

The housing employs heavy-duty cast iron, paired with stainless steel components and high-quality fittings. This material selection addresses the corrosive nature of raw waste, ensuring structural integrity over time. Japanese bearings support the internal mechanics, providing durability against the constant motion required to move thick, biologically active fluids through the system.
04OPERATION
Automatic Control via Float Switch
A built-in float switch manages the cycle, turning the unit on and off as water levels fluctuate. This mechanism protects the motor from dry running and overheating by cutting power when water drops below the minimum operating level. The system operates autonomously, requiring no manual intervention during normal drainage cycles.
05PACKAGING
Carton Dimensions and Weight
The packing carton measures 51 x 30 x 22 cm and weighs 26 kg. These figures describe the outer container rather than the pump itself, indicating a dense, solid unit within. The size suggests careful handling is required during unboxing, reflecting the mass of the cast iron components inside.
06AT A GLANCE
The key points
- Heavy-duty cast iron body and impeller
- 2250W motor drives 28,800 L/h flow
- Submersible to 32 metres depth
- Automatic float switch prevents dry running
- 2 inch inlet and outlet connections
About this product
The NEW Protege PSWP-085 2250W Submersible Sewage Pump is now available and is already becoming one of the most demanded sewage pumps on the market. A must have for any dwelling using septic tanks, sewage pits or wastewater catchments, this class-leading and powerful unit is the ideal pumping solution.
This edition to the Protege range is predominantly used for transporting sewage, storm water and wastewater away to a place of treatment or disposal. Raw sewage contains an abundance of harmful bacteria, viruses, parasites and a whole host of other biological agents that are extremely toxic to humans. This waste requires special equipment to handle properly, and the PSWP-085 is more than capable of performing such tasks. Manufactured with heavy-duty cast iron, stainless steel and high-quality fittings, it’s built to tackle the most arduous sewage situations.
It’s fully submersible up to a huge depth of 32 metres and waterproof sealed. It features a cast iron impeller along with high-performance Japanese bearings and a 2 inch inlet and outlet. The PSWP-085 brings leaps and bounds in power from alternative designs, employing a 2250W motor. As a result, it boasts a 28,800 L/h pump rate capable of transporting to an incredible 14m delivery height. It also features fully automatic operation via the built in float switch turning the pump on and off when necessary.
Function of the float switch
The float switch protects your pump from dry running and overheat by cutting-off the pump when water reaches the minimum level at which the pump can operate. Clean water pumps can operate at a lower level than dirty water and sewage pumps as they do not have to account for particles being able to pass through the bottom of the pump. Pumps without a float or auto-cut-out switch cannot run automatically and have to be manually controlled.
Protege are the online industry leaders with unparalleled quality and the PSWP-085 is no exception, bringing best-of-breed function and reliability. So manage your septic, sewage, storm water and wastewater tanks in the safest, most environmentally friendly way. Save time and money by picking up the latest Protege PSWP-085 2250W Submersible Sewage Pump today!
Protege – the leader in pump innovation.
Specification
- Brand
- Protege
- Model
- PSWP-085
- Rated Power
- 2250W
- Pump Rate
- 28,800L/H (max)
- Max. Head Height
- 14m
- Max. Depth
- 32m
- Housing
- Stainless Steel
- Pump Head
- Cast Iron
- Pump Base
- Cast Iron
- Impeller
- Cast Iron
- Mechanical Seal
- Ceramic/Carbon
- Cable Length
- 10m
- Inlet/Outlet
- 2 Inch
- Operating Voltage
- 240V
- Power Plug
- Australian Standard
IN THE BOX
1x Protege PSWP-085 Submersible Sewage Pump
User Manual
SIZE WEIGHT
- Carton Weight
- 26kg
- Carton Dimensions (W x D x H)
- 30 x 51 x 23cm
- Product Weight
- 22kg
- Product Dimensions (W x D x H)
- 19 x 27 x 51cm
- SKU
- PMPSWGPROACI1
