01POWER DRILLS & ACCESSORIES
Precision Coring for Heavy Demolition

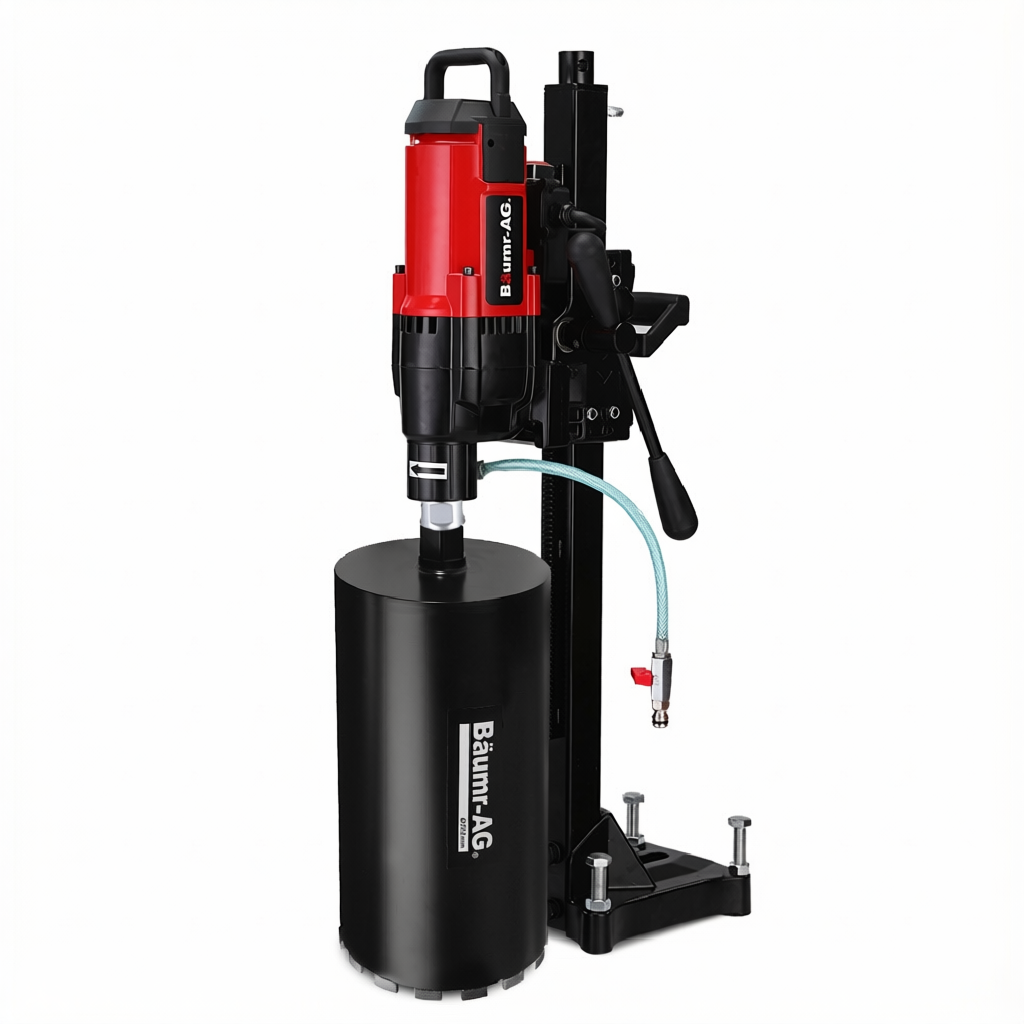

The Baumr-AG vertical stand core drill stands as a robust instrument for structural modification, its aluminium frame and steel components built to handle the density of concrete. It transforms raw building material into precise openings without the chaos of traditional demolition.
This combo pairs the 3200W power unit with a dedicated 202mm diamond bit, suitable for tradespeople and engineers who require clean, circular cuts in floors, walls or slabs for plumbing, electrical or HVAC installations.
02MATERIALS
Forged Steel and Copper Construction
The drill’s chassis is cast from aluminium, providing rigidity while managing weight, while the output shaft is forged from steel for durability under load. The motor itself is copper-wound, contributing to the 3200W rated output that sustains performance during extended drilling sessions. A copper water inlet facilitates cooling, essential when working through dense aggregates.
04IN THE BOX
Complete Setup with Assembly Required
The package contains the core drill, the drill rig which requires assembly, and the 202mm diamond core bit. The bit features high-carbon industrial grade steel shafts with laser-welded diamond teeth, designed for a 400mm working length. The user manual is accessible online, guiding setup for the 1-1/4 inch UNC spindle thread connection.
05DIMENSIONS
Substantial Footprint and Weight
The assembled drill measures 210mm wide, 350mm deep and 880mm high, weighing 22kg. The separate 202mm bit adds another 7kg, measuring 200mm in diameter and 460mm in total length. The packing carton for the drill is 36 x 94 x 21cm, while the bit ships in a 44 x 49 x 23cm box, indicating a significant logistical footprint for this professional-grade tool.
06AT A GLANCE
The key points
- 3200W copper motor drives the 280mm vertical stand
- Includes a 202mm laser-welded diamond core bit
- Aluminium chassis with steel forged output shaft
- IP54 rated for wet or dry coring applications
- Spindle thread is 1-1/4 inch UNC for bit compatibility
07
SPECIFICATIONS
- 280mm Vertical Stand Core Drill Input Power
- 240V 50Hz AC Rated Output Power: 3200W Cooling: Air cooled No load speed: 550r/min Speeds: 1 speed Drilling Size Range: 20-280mm Spindle Thread: 1-1/4″” UNC Coring Type: Wet/Dry Coring Construction Material: Drill: Aluminium Chassis, Steel Forged Output Shaft, Copper Water Inlet, Copper Motor Stand: Aluminium Guide Rail, Steel Base IP Rating: IP54
- Diamond Core Drill Bit – 202mm
- Cutting Diameter
- 202mm
- Working Length
- 400mm
- Total Length
- 460mm
- Type
- Coring Cutter
- Shaft Material
- High-Carbon Industrial Grade Steel
- Cutting Teeth Material
- Laser Welded Diamond Imbedded Steel
- Shank Size/Type
- 1 1/4 UNC
IN THE BOX
- 1 x Baumr-AG Core Drill
- 1 x Drill Rig (Assembly Required)
- 1 x 202mm Baumr-AG Diamond Core Drill Bit
- User Manual Accessible Online
SIZE WEIGHT
- 280mm Vertical Stand Core Drill
- Product Dimensions (W x D x H)
- 210 x 350 x 880mm
- Product Weight
- 22kg
- Carton Dimensions (W x L x H)
- 36 x 94 x 21cm
- Carton Weight
- 27kg
- Diamond Core Drill Bit – 202mm
- Product Dimensions
- 200mm x L460mm
- Product Weight
- 7kg
- Carton Dimensions (W x L x H)
- 44 x 49 x 23cm
- Carton Weight
- 15kg
