01DESKTOPS & ACCESSORIES
The professional workstation for your Mac mini
Situated beneath the Mac mini, this docking station transforms a compact desktop into a fully equipped command centre. The premium aluminium alloy chassis sits flush, offering a stable base that integrates seamlessly into any desk setup.
Designed for the Mac mini M4 and M4 Pro, it provides high-speed connectivity, expanded storage, and dual display support. It suits professionals who require reliable performance and organised peripherals without cluttering their workspace.

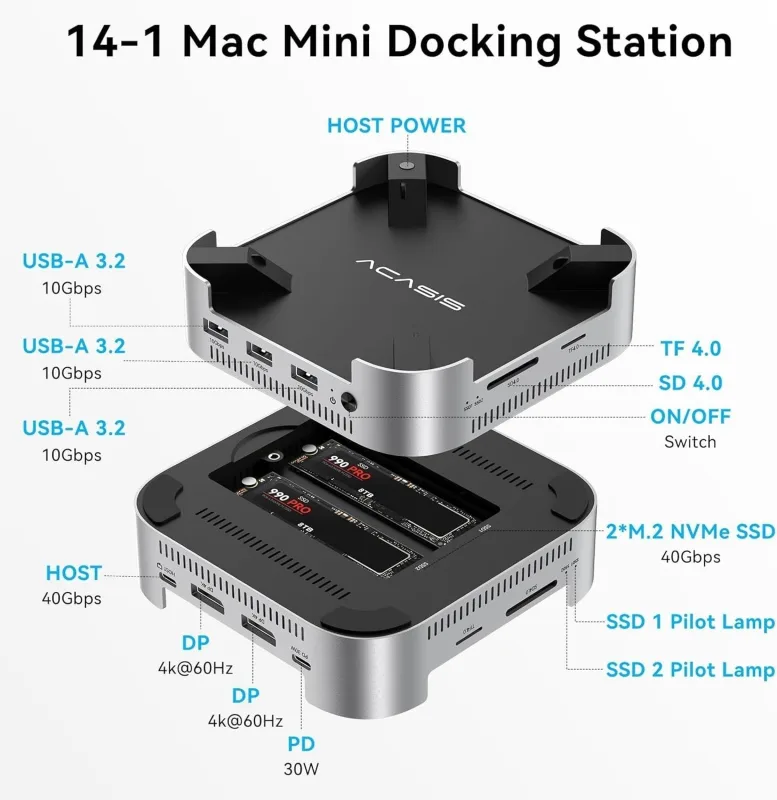

Transform your Mac mini into a professional workstation with the ACASIS M001Pro, featuring USB4 40Gbps connectivity, dual M.2 NVMe SSD expansion, dual 4K DisplayPort outputs, and comprehensive 14-in-1 connectivity.
02MATERIALS
Precision-machined aluminium construction
The body is crafted from premium aluminium alloy, providing a rigid structure that dissipates heat efficiently. Internal shielding is integrated to reduce interference with Wi-Fi and Bluetooth signals, ensuring wireless devices remain responsive even when the dock is under heavy load.
04EXPANSION
Flexible storage and display output
Two M.2 slots accept NVMe drives in sizes ranging from 2230 to 2280, supporting up to 16TB of total storage. Dual DisplayPort outputs extend the visual field to two 4K monitors at 60Hz, creating an immersive environment for editing, coding, or data analysis.
DETAILS
Convenient power and peripheral access
An integrated external power button extends the Mac mini's controls to the front panel for easy access. The dock includes three USB-A 3.2 Gen 2 ports, SD and TF card readers, and a 30W PD input, consolidating cables into a single, tidy hub.
AT A GLANCE
The key points
- USB4 40Gbps host connection for rapid data transfer
- Holds two M.2 NVMe SSDs up to 16TB total capacity
- Dual DisplayPort outputs drive two 4K@60Hz monitors
- Aluminium chassis with dual active cooling fans
- Includes three USB-A 3.2 Gen 2 ports and card readers
Features
- USB4 40Gbps host connection provides ultra-fast data transfer and broad Thunderbolt compatibility.
- Supports 2 M.2 NVMe SSDs with up to 16TB total capacity.
- Software RAID 0 and RAID 1 support for enhanced performance or data redundancy.
- Dual DisplayPort outputs support dual 4K@60Hz displays.
- Includes 3 USB-A 3.2 Gen 2 10Gbps ports, SD 4.0, TF 4.0, USB4 host, and 30W PD input.
- Dual active cooling fans and aluminium chassis improve thermal performance.
- Internal shielding reduces Wi-Fi Bluetooth interference.
- Integrated external Mac mini power button extension provides convenient access.
Specifications
- Model
- ACASIS M001Pro
- Product Type
- 14-in-1 Mac Mini Docking Station
- Host Interface
- USB4 40Gbps
- SSD Support
- 2 M.2 NVMe PCIe
- SSD Sizes
- 2230 / 2242 / 2260 / 2280
- Maximum Storage
- Up to 16TB
- RAID
- Software RAID 0 / RAID 1
- Display Output
- 2 DisplayPort
- Maximum Resolution
- Dual 4K@60Hz
- USB Ports
- 3 USB-A 3.2 Gen 2 10Gbps
- Card Readers
- SD 4.0 / TF 4.0
- Power Delivery
- 30W
- Cooling
- Dual Active Fans
- Material
- Premium Aluminium Alloy
- Compatibility
- Thunderbolt 5 / 4 / 3, USB4
- Designed For
- Mac mini M4 / M4 Pro
