01LIGHT BULBS
Integrated brilliance for outdoor illumination

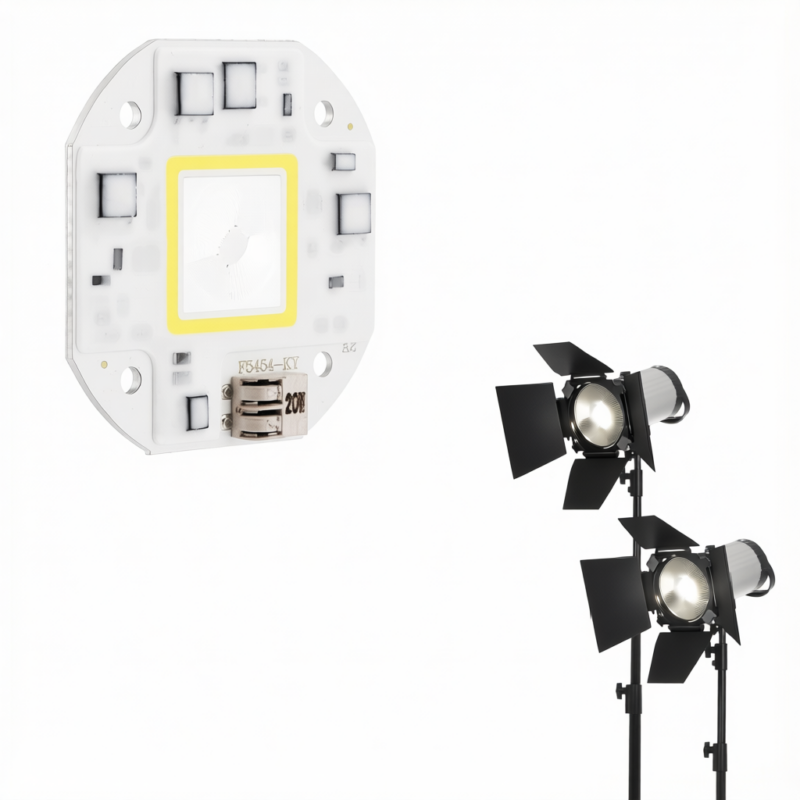

This compact COB module integrates the light source and constant current drive into a single unit, simplifying the construction of high-output fixtures. It is designed for professionals building or repairing projection lights, spotlights, and street lamps.
The chip draws power directly from standard AC voltage, removing the need for separate drivers or intricate soldering. Its superconducting aluminum base handles thermal load, ensuring stable performance in demanding outdoor environments.
02DESIGN
Integrated drive within a compact frame
The Derundahao chip merges the LED array with its constant current driver, creating a self-contained power unit. This integration reduces component count and assembly time, allowing installers to plug in cables directly without managing external ballasts. The design prioritizes efficiency, delivering high luminous flux while maintaining a small physical footprint suitable for modern fixture architectures.
04PERFORMANCE
Wide beam and direct AC connection
Operating on AC 100-260V, the module connects directly to mains power, streamlining installation for streetlights and mining lamps. It projects a 120-degree beam, ideal for broad-area coverage rather than narrow pinpoint focus. With a color rendering index of 70 and 90 lumens per watt, it provides functional white light suited for task-oriented outdoor lighting applications.
05DETAILS
Precise dimensions for easy integration
Measuring approximately 54 by 54 millimetres with a height of 1.5 millimetres, the chip fits neatly into standard housing slots. The light surface itself is a 25-millimetre square, offering a concentrated source area. Weighing just 17 grams, it adds minimal structural load to fixtures, making it a practical replacement for older, bulkier light sources in existing infrastructure.
06AT A GLANCE
The key points
- Integrated constant current drive eliminates external components
- Operates directly on AC 100-260V without complex wiring
- Superconducting aluminum substrate manages heat efficiently
- 120-degree illumination angle covers wide areas uniformly
- Compact 54mm square form factor fits tight housings
07
Highlights
- Dimensions
- Approx 54*54*1.5(mm)/2.1*2.1*0.1inch
- Size
- Approx 5.3*5.3*0.6cm/2.1*2.1*0.2inch
About this product
1, New projection light source, light source and constant current drive are integrated. 2, No need drive&welding – directly use AC 100-260V voltage. 3, Simple&convenient – only need plug in the cable, time-saving&money-saving. 4, Wide applications – can be used as replacement chip for projection lights, spotlights, mining lights, street lights. 5, Long lifespan – made of superior material, guarantee long service time.
New projection light source, light source and constant current drive are integrated.
Simple&convenient – only need plug in the cable, time-saving&money-saving.
Wide applications – can be used as replacement chip for projection lights, spotlights, mining lights, street lights.
Long lifespan – made of superior material, guarantee long service time.
Equipped with sufficient wattage, please match it with sufficient wattage thick shell!
Need to coat thermal conductive silicone grease closely to the heat sink before installation!
Specification
Features:
No need drive&welding – directly use AC 100-260V voltage.
Specifications:
Type: COB light bead/light source chip
Chip Brand: Derundahao
Color rendering index: 70
Luminous flux: 100-110(lm)/W
Power: 20/30/50(W)
Forward voltage: AC100-260(V)
Wire Material: no
Substrate Material: Superconducting Aluminum
Illumination angle: 120 °
Luminous efficiency: 90 (lm/W)
Thermal resistance: ≤ 5 (°/W)
Correlated color temperature:
White light (AC100-260V 20W&AC100-260V 30W&AC100-260V 50W)
Light surface size: Approx 25*25(mm)/1*1inch
Weight: Approx 17g/0.6oz
Package list:
1 * COB Light Source Chip
Note:
Please remember to pay attention to heat dissipation!
Every 10W needs 500g lamps.
