Quiet strength for the modern garage
The King Tech 1200N sits discreetly above your garage door, ready to glide it open with quiet precision. Its red, white and black housing blends into the structure while handling the heavy lifting of daily entry.
This 24 V DC motor powers roller doors up to 6 metres high and 120 kg in weight. It suits homeowners who value a smooth, silent routine without compromising on power or safety.
02PERFORMANCE
Smooth, silent mechanical action
The 24 V DC motor delivers 1200 Newtons of consistent lifting force, allowing the door to move with a controlled, low-vibration rhythm. Soft start and soft stop features ensure the mechanism engages gently, reducing stress on the rollers and tracks while maintaining a whisper-quiet profile for early mornings or late evenings.
04CONTROL
Four remotes and wall button included
The package includes four remote controls with a range of up to 50 metres, alongside a wireless wall button for convenient access from inside the garage. The electronic power stabiliser ensures consistent performance regardless of minor voltage fluctuations, while a manual release handle allows for operation during power outages.

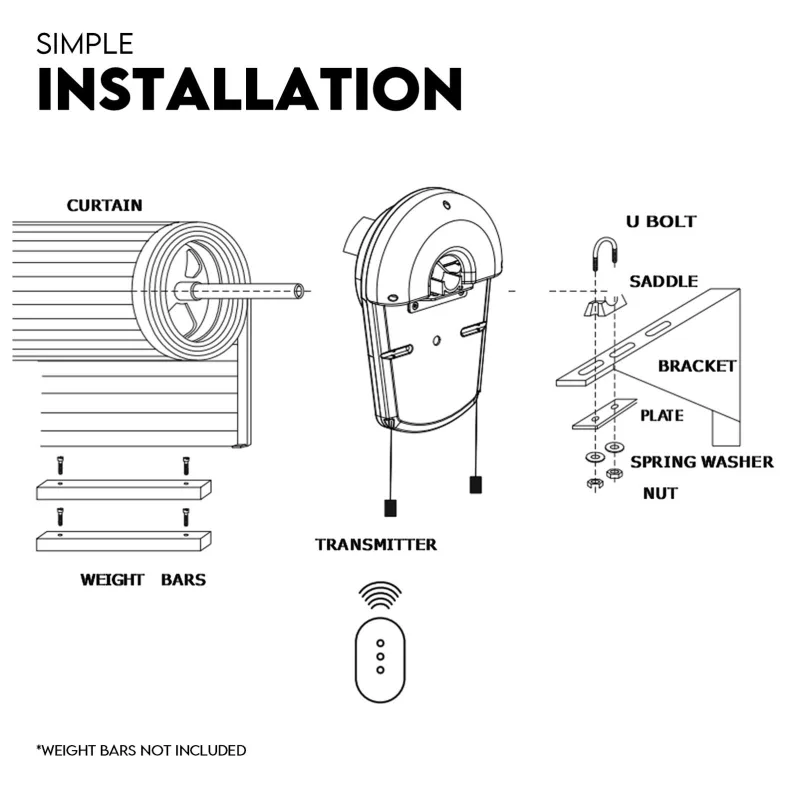

05INSTALLATION
Flexible mounting for any setup
Designed for left or right-side installation, this unit adapts to various garage configurations. The packing carton measures 46 x 32 x 22 cm and weighs 9 kg, containing the 6 kg motor unit and accessories. The durable construction is permanently lubricated, supporting long-term reliability without frequent maintenance.
06AT A GLANCE
The key points
- 1200 N lifting force handles doors up to 22 m²
- Soft start and stop motion protects hardware
- Automatic safety reverse on obstruction
- Includes four remotes and a wireless wall button
- Left or right side mounting options
07
About this product
Built for Aussie garages that demand quiet, reliable muscle, the KingTech 1200N Garage Door Roller Auto Opener Motor delivers serious grunt without the racket. With soft start / soft stop motion, it glides your door open smooth as silk, while the whisper-quiet motor keeps the peace at home. Designed to fit left or right-hand setups, it powers doors up to 22 m² or 120 kg with ease. The automatic safety reverse system adds peace of mind, and the LED courtesy light kicks in when you need it most. Straightforward to install and backed by KingTech engineering, this unit means business.
Key Features
- 1200 N lifting force handles heavy roller doors up to 22 m².
- Whisper-quiet drive for early mornings and late nights.
- Soft start / soft stop protects motor and door hardware.
- Automatic safety reverse stops and retracts on obstruction.
- LED courtesy light illuminates entry for added safety.

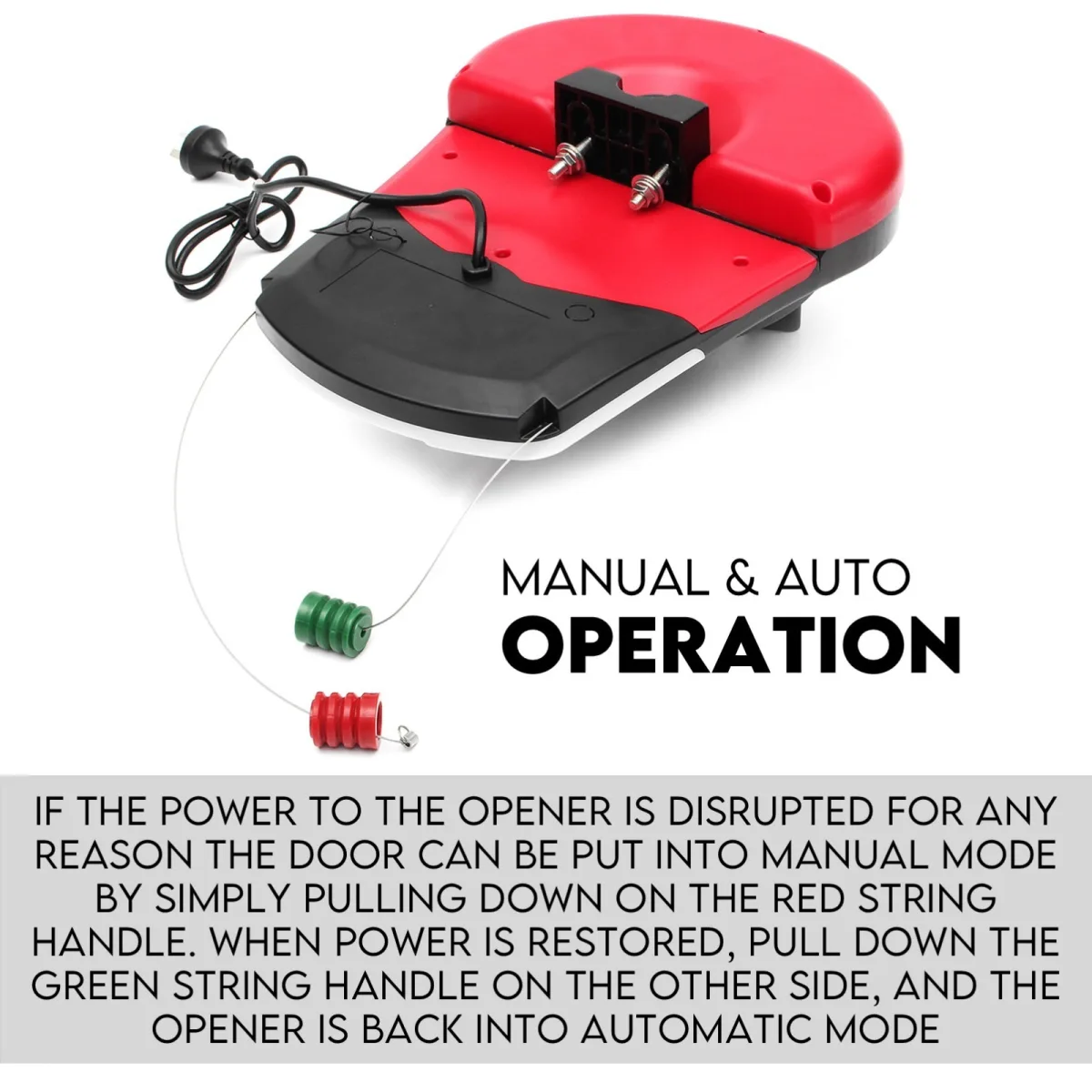

- Manual release handle allows operation during power loss.
- Left or right side mounting for flexible installation.
- Electronic power stabiliser keeps performance consistent.
- Four remote controls plus wireless wall button included.
- Long-range 50 m remote reach for convenient access.
- Durable 24 V DC motor runs cool and lasts longer.
- Low-vibration design — permanently lubricated and built tough.
Specifications
- Maximum Lifting Force
- 1200 N
- Input Power
- 240 V AC, 50–60 Hz
- Motor Voltage / Type
- 24 V DC
- Maximum Door Area
- Up to 22 m²
- Maximum Door Height
- Up to 6 m
- Maximum Door Weight
- 120 kg
- Control Range
- Up to 50 m
- Unit Weight
- 6 kg
- Mounting Position
- Left or right side
- Included Accessories
- 4 × remotes, 1 × wireless wall button, 1 × user manual
- Power Supply for Remotes
- A27 12 V battery
- Notes
- Weight balancing bars not included
This Roller Door Opener is Perfect for you if
- Your garage setup meets the following minimum clearances:
- The distance between the edge of the door curtain and the inside of the bracket should be at least 85mm.
- The distance between the edge of the door curtain and the outside of the bracket should be at least 135mm.
- You want an optimal installation, the recommended side clearances are:
- The distance between the edge of the door curtain and the inside of the bracket should be more than 110mm.
- The distance between the edge of the door curtain and the outside of the bracket should be more than 160mm.
- For returns due to change of mind, a 20% restocking fee will be applied.
- Original freight cost will not be refunded where freight costs were listed separately.
