01FENCE & GATE ACCESSORIES
Silent precision for your grand entrance
The gateway to your property should feel as considered as the architecture itself. This system transforms a heavy double swing gate into a seamless, automated threshold that responds with quiet confidence.
Designed for gates up to 500kg each, it suits homeowners who value security without sacrificing elegance, offering full control from within or via remote.

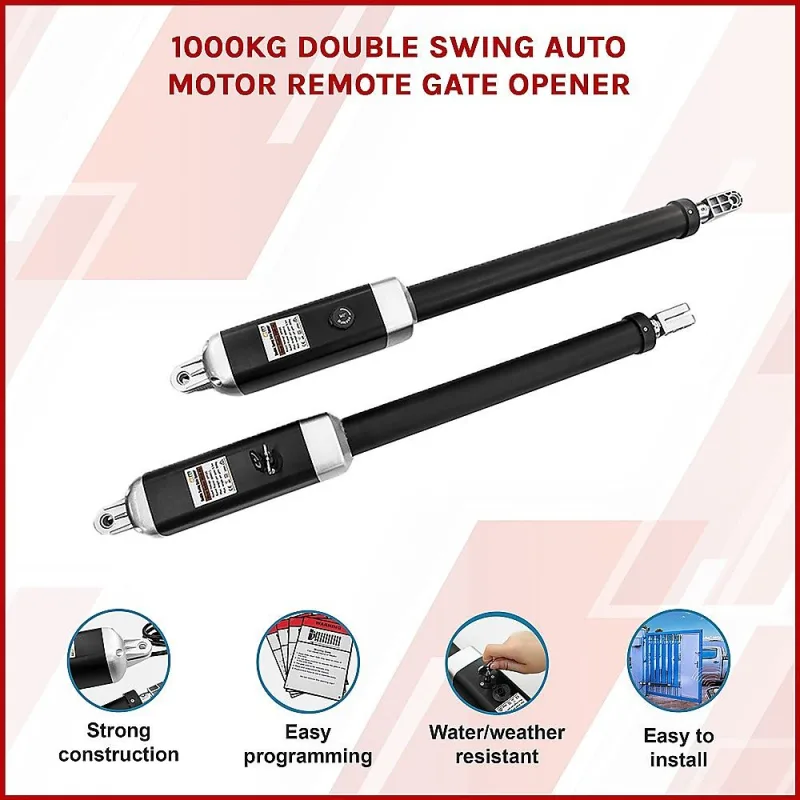

When it comes to securing your home in a stylish, durable, and safe way, you shouldn't settle for anything less than this 1000KG Auto Double Swing Gate Opener.
02MATERIALS
Robust aluminium alloy construction

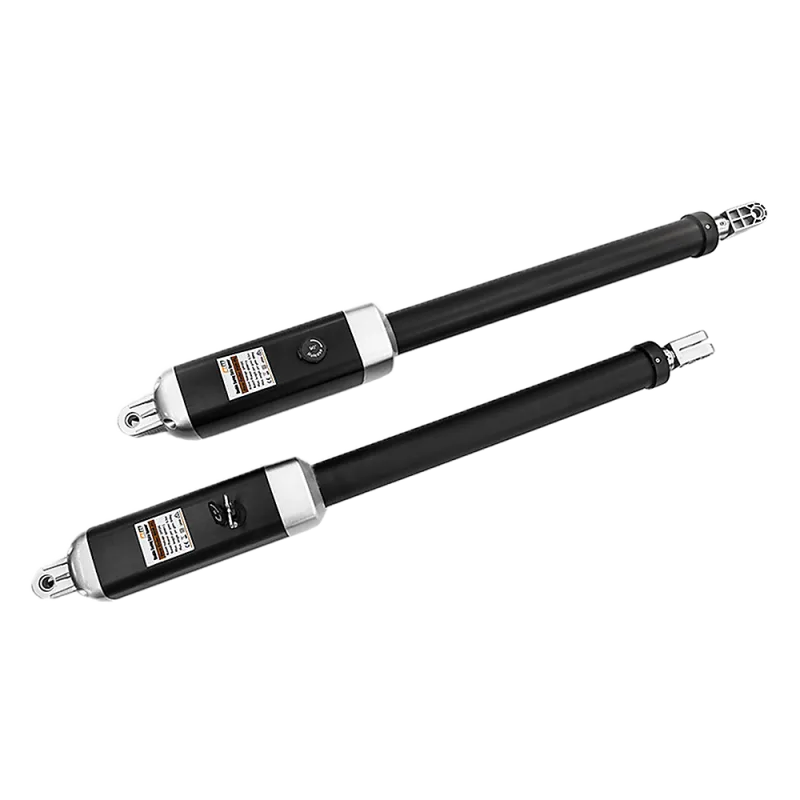

The core of the system is an aluminium alloy actuator housing a powerful motor. This material choice ensures durability against the elements while maintaining a refined aesthetic presence at your property’s boundary.
04CONTROL
Intuitive digital interface
A digital control board provides clear status indicators and menu settings for easy configuration. Three included remote controls offer 30 metres of reliable range, featuring four buttons for open, close, stop, and pedestrian access.
05SAFETY
Adaptive obstruction response
The system includes a stop-and-reverse mode with customisable sensitivity to handle obstructions gracefully. Over-current protection adds a layer of electrical safety, while manual operation ensures access even when power fails.
06SPECS
Precise engineering limits
Each gate can weigh up to 500kg and span 5.5 metres wide. The unit operates between -25°C and +55°C with IP44 protection. A carton measuring 91 x 28 x 19 cm contains all necessary hardware for installation.
07AT A GLANCE
The key points
- Aluminium alloy actuator with a powerful internal motor
- Soft, smooth and silent opening and closing action
- Includes three remote controls with 30m range
- Manual operation available during power failure
- Waterproof and dust-proof IP44 control box
Features
- Aluminium alloy actuator with a powerful motor inside
- Soft, smooth and silent openings and closings
- Stop and reverse mode in case of obstruction (customisable sensitivity)
- Can operate in dual gate or single gate modes
- Customisable interval between opening of master gate and slave gate
- Auto-close is fully adjustable between 0 and 99 seconds
- Over-current protection
- Manual operation in case of power failure
- 3 x Remote Controls (Battery: A27 12V) with 30m operation range.
- button operation: close, open, stop and pedestrian open
- Easy-to-use digital control board with status and menu settings
- Waterproof and dust-proof control box

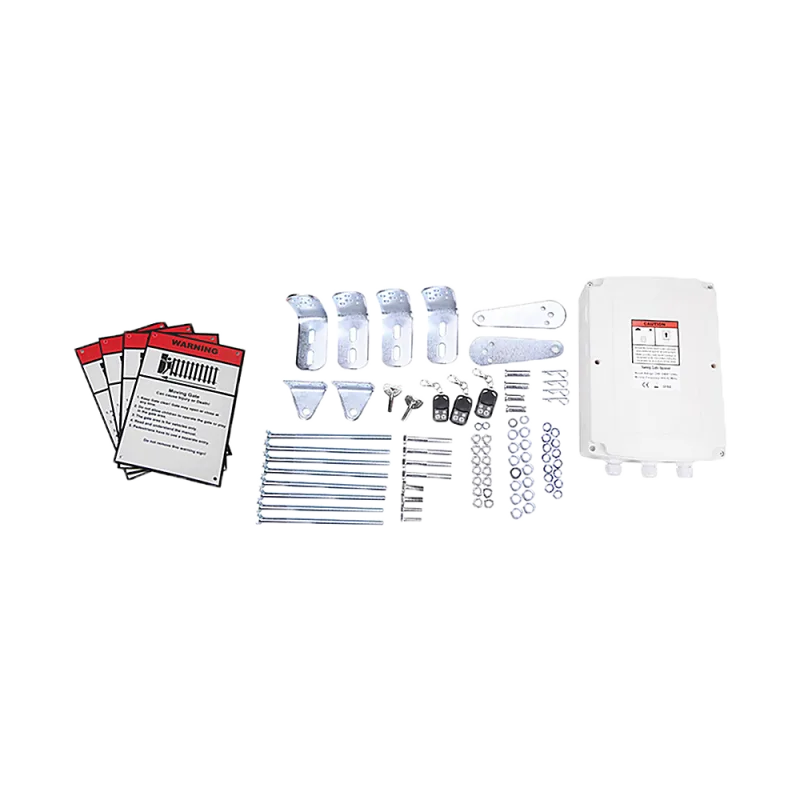

- Full user manual and all installation hardware included
- Gates are NOT included
Specifications
- Voltage
- 24V DC
- Gate limit type
- Electromagnetism Limit
- Speed of actuator
- 16mm/s
- Max piston travel
- 385mm
- Maximum weight capacity of each gate
- 500kg
- Maximum width of each gate
- 5.5m(supporting a200kg gate)
- 90 degree time of rotation
- 8 -15 seconds
- Maximum opening angle
- 0 to 110 degrees
- Operating temperature
- -25C to +55C
- Protection class
- IP44
- CE/EMC approval model
Attributes
Material: Gate Opener
